Product Description:

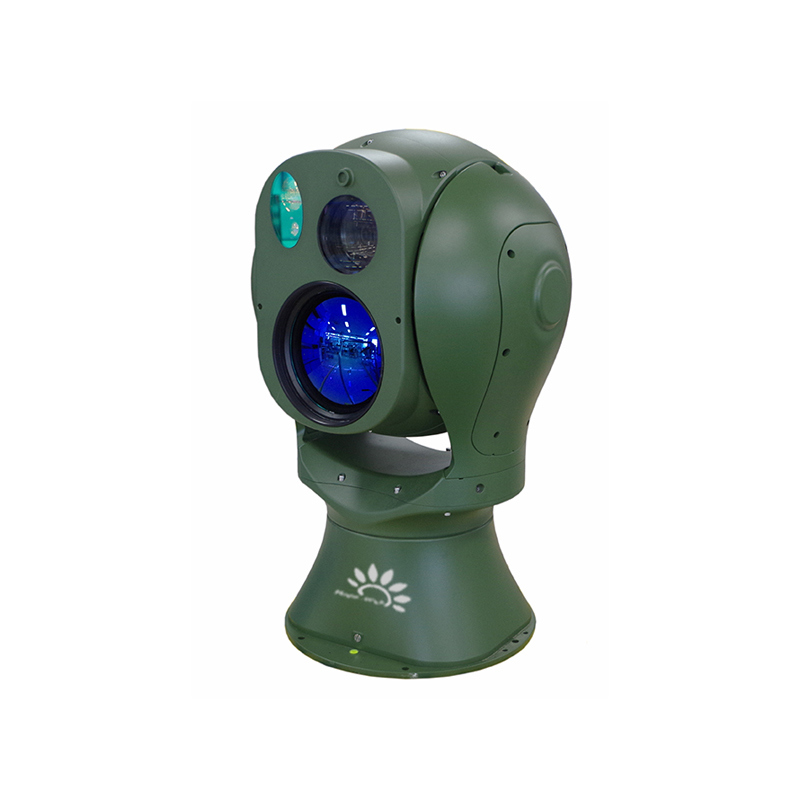

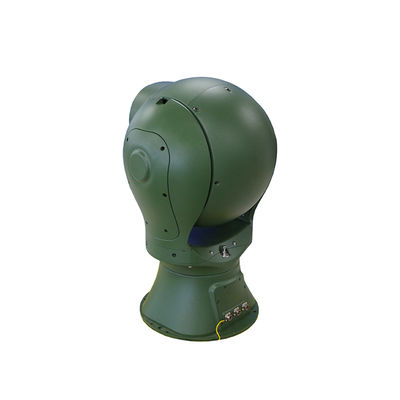

HP-Z50IV-CTVC690110-21100-LRF15K heavy-duty dual-band photoelectric turntable is a long-range photoelectric detection system independently developed and designed by HP-Z50II-CT62245-2186, which can integrate multi-spectrum detection modules such as high-definition visible camera, refrigeration thermal imaging, etc. , laser ranging and other modules can be installed as needed to realize the functions of all-weather, all-time, all-dimensional detection, location, tracking, identification and tracking of targets, the utility model can be widely applied to the three-dimensional security prevention of key areas and key targets such as border and coastal defense, military bases, airports, harbors, nuclear, biological and chemical facilities, etc. . The acting distance can reach 22 km.
In conclusion, the Anti Drone System is a highly effective solution for enhancing security and mitigating the risks posed by unauthorized drone activity. With its waterproof design, reliable power supply, and advanced UAV radar technology, this system offers a robust defense against drone threats, making it an indispensable asset for safeguarding critical infrastructure and sensitive areas.
î Strong load capacity: it can support large magnification visible light camera, large aperture refrigeration thermal imager, to achieve ultra-long-range target observation;
î Detection spectrum width: integration of high-definition visible light, medium-wave thermal imaging, dual-band detection advantages complement each other, combining active and passive detection, multi-source data fusion processing, so that the target can not hide, to meet the day and night, all-weather environment monitoring needs;
î Fast turning speed: the speed of rotation is up to 80 °/s, the acceleration is up to 100 °/s 2, the start-stop is quick, the operation is smooth, it is helpful to capture and track the moving target quickly;
î Wide coverage: azimuth rotation range 0 ° ~ 360 °, pitch rotation range -90 ° ~ + 90 °, to achieve non-dead angle detection, full-dimensional coverage;
î High control precision: the precision angle encoder with high-precision closed-loop servo control system, positioning accuracy up to 0.02 ° , high-performance image processing unit with high-precision focusing control mechanism, to achieve accurate automatic focusing;
Technical Parameters:
| Model |
HP-Z50IV-CTVC690110-21100-LRF15K |
| Detection Distance |
Vehicle:22km
Human 18km
|
| Recognition Distance |
Vehicle:15km
Human 9km
|
| Thermal Camera |
- Detector: cooled focal plane array MCT detector
- Wavelength: 3.7 μm ~ 4.8 μm
- NETD: 20mK
- 90 ~ 1100mm, 12x continuous optical zoom, F5.5
- Lens control: Electric Zoom; Manual/auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, accurate and high speed; 3CAM mode and AS + DOE optical structure, high infrared transmittance, the zoom process has no virtual focus and the axis is small
6. Image Enhancement: SDE Digital Image Enhancement Technology, enhance image details, support 255 level thermal image enhancement adjustment
7. Pseudo-color polarity: 16 pseudo-color images, hot black/hot white polarity
8. Image parameters: AGC automatic gain control, brightness, contrast adjustment
9. Electron doubling: 1.0 ~ 8.0 × continuous doubling (step length 0.1) , supporting optical electron relay doubling, supporting global hawk-eye diagram
10. Rangefinder: supports rangefinder
11. Bad Correction: support for bad correction
12. Image Correction: support manual correction, background correction, automatic correction time interval, Gamma correction parameters adjustable
13. Bright Light Protection: supports protection against Sun Damage
- Detector Array: 640 × 512
- Field of view: 6.1°×4.9°～0.5°×0.4°
|
| Visible Camera |
1. Sensor type: backlit ultra-low illumination star-level CMOS
- Minimum illuminance: Color: 0.0005 lux; black and white: 0.0001 lux; 0 Lux (IRON)
- Lens: 12～1100mm, Mega HD electric zoom; Manual/auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, accurate and high speed
4. Image Processing: support for white balance, electronic shutter, frame accumulation, backlight compensation, strong light suppression, 2D/3D digital noise reduction, electronic anti-shake, wide dynamic, heat wave drift suppression
- Day-night type pass light: 0.4-0.75 um visible broad spectral window and 0.8-0.95 um near infrared spectral window
Support electronic transmission fog, optical transmission fog
|
| Laser Range Finder |
1. Range: 200 to 15000 meters
- Ranging Accuracy: ± 3m
- Ranging Frequency: 0.2 Hz
- Laser wavelength: 1570 nm
|
| Audio and video |
- Resolution: 1920 × 1080; 1280 × 1024; 1280 × 960; 1024 × 768; 1280 × 720; 704 × 576; 640 × 512; 640 × 480; 400 × 300; 384 × 288; 352 × 288; 352 × 240
- Visible resolution: 2592 × 1520; 2560 × 1440; 1920 × 1080; 1280 × 1024; 1280 × 960; 1024 × 768; 1280 × 720; 704 × 576; 640 × 512; 640 × 480; 400 × 300; 384 × 288; 352 × 240
- Video Coding: H. 265/h. 264/MJPEG, multi-stream support
4. Video rates: 32 KBPS to 16 Mbps
- Audio encoding: G. 711A/g. 711U/G726
- Image rollover: right/left/up/down/diagonal
- OSD settings: Support Channel name, time, PAN, field of view angle, focal length of the OSD display settings, support preset position name settings
|
| Intelligent function |
- Fire Detection Alarm: Threshold Level 255, target size, target number 1-16 can be set, automatic selection of the most prominent target display, hot tracking
2. Intelligence analysis: support intrusion detection, cross-border detection, entry/exit area detection, motion detection, loitering detection, people gathering, fast moving, target tracking, items left behind, items taken; Human/vehicle target detection, face detection; and support 16 regional settings; support intrusion detection, human, vehicle filtering function; support target temperature filtering function
3. Automatic tracking: single-scene tracking support multi-scene tracking support panoramic tracking support alarm linkage tracking
4. Intelligent Information Fusion: support 512 AR intelligent information fusion, support point of fire, intelligent analysis video identification information fusion, support azimuth angle, field of view, focal length, multiple information fusion
5. Image Fusion: support 18 kinds of dual-light fusion mode, support picture-in-picture function
6. Alarm management: Support Alarm capture upload
|
| Enhanced function |
1. Ranging function: support passive ranging; support optional laser ranging
2. Strong light protection: support, protection from Sun Burn function
3. Temperature Correction: non-thermal design, imaging sharpness is not affected by temperature
4. Scene mode: support multi-configuration scene, adapt to different environment applications
5. Auto-focus tuning: support remote auto-focus accuracy parameter adjustment, adapt to different scenarios
6. Day-night cruise: day-night cruise groups with different preset, day cruise 1-40 preset, night cruise 41-80 preset, according to the state of light automatically switch day and night, adapt to different space-time scenarios
7. Lens servo: support lens pre-position, focal length back, focal length positioning function
8. Power-off memory: support to restore the pre-power-off position, pre-position state, cruise state, line scan state
9. Off and on: support
10. Camera diagnosis function: support network alarm, support IP conflict alarm, support illegal access alarm (illegal access number, lock time can be set) , support SD card abnormal alarm (SD space is insufficient, SD card error, no SD card) , video block alarm, anti-sun damage (support threshold, block time can be set)
11. Life Cycle Management: Health Index recording function, support working time, shutter times, working temperature, limit temperature, etc.
12. Remote Maintenance: with fault inquiry, self-examination, remote restart function; online upgrade, remote upgrade
13. Keyframe settings: support keyframe interval 100-level adjustable
14. Configuration File: Support Configuration File Import and export function
15. Web Access: support WEB full function configuration, remote online upgrade
|
| Security control |
1. Support illegal access alarm: illegal access number, lock time can be set
2. Support three levels of user rights management, administrators, operators, ordinary users
3. Security mode: authorized user name and password, support IP white list and black list, Mac White list and black list
4. User Login Lock
|
| Servo turntable |
1. Structure: spherical, multi-dimensional free-form surface shape, small wind resistance, strong anti-shake, can resist 12 strong wind
2. Two-axis two-frame, up and down split design, can be independent packaging transport, rapid combination
3. Windows: Dual/triple windows, 2/3 band sensors, wiper
4. Level range: N × 360 ° continuous rotation, after power failure can be mechanically locked
5. Pitch range:-90 ° ~ + 90 ° , with soft limit function, program can be set
6. Rotation Speed: level 0.01 ° ~ 80 °/s, pitch 0.01 ° ~ 60 °/s
7. Acceleration: 100 ° S 2 level, 100 ° S 2 pitch
8. Speed adaptation: with intelligent induction speed change function, support lens focal length speed adaptation function
9. Driving mode: adopting high torque rare earth permanent magnet synchronous motor direct drive, high speed start and stop
10. Positioning accuracy: better than 0.02 °
11. Location Time: less than 4s
12. Zero setting: support for horizontal and pitch zero setting
13. Preset cruise: 3000, supports 16 cruise routes, each can support 256 preset positions
14. Path scan: Support Preset Point Cruise, day and night cruise, line scan, frame scan, apple skin scan, scan speed can be set
15. Over watch: preset position/pattern scan/cruise scan/vertical scan/frame scan/panoramic scan/apple peel scan/horizontal fan scan
16. Motor Protection: turntable block and turn protection, high reliability
17. Gyro image stabilization: optional two-axis gyro stabilization, pitch and roll ≤ ± 10 ° , period greater than 6 seconds, los stabilization accuracy ≤2 mrad (RMS)
|
| Electrical interface |
1. Network interface: 1-way RJ45,10/100base-t adaptive
2. Network protocol: support HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP network protocol; support ONVIF and GB28181 protocol
3. Secondary development: provide free SDK, easy to use or convenient secondary development
4. Physical interface: Alloy Waterproof Aviation Plug
5. Optical network: (optional built-in Fiber Module, single mode fiber output, improve anti-interference)
|
| Power consumption |
- Power: with ultra-wide input power adapter, AC90V ~ 305V to DC48V
2. Power consumption: the maximum power consumption of the turntable is less than 500W and the stable power consumption is less than 150W
|
| Environmental Indicator |
- Working Temperature:-40 °C ~ + 60 °C
- Storage Temperature:-45 °C ~ + 70 °C
- Humidity: < 90% Rh
- Lightning protection: Interface Circuit built-in surge protection, 6000V
- Salt spray: in PH 6.5 ~ 7.2, continuous spray 96 hours, no change in the surface
- Protection class: IP66(Ball Chamber air-tight IP67)
|
| Dimension weight |
Dimensions: Ф565 mm × H880 mm
Total weight: ≤105 kg
|
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.Applications:
Product Application Occasions and Scenarios for Hope-Wish Anti Drone System (Model HP-):
The Hope-Wish Anti Drone System, originating from China, is a cutting-edge solution designed to detect and neutralize unauthorized drone activity. With its advanced drone detection radar technology, this system is ideal for a wide range of applications and scenarios where drone interference poses a threat.
One key application of the Hope-Wish Anti Drone System is in securing critical infrastructure such as airports, power plants, and government buildings. By deploying this system in such locations, security personnel can effectively detect and respond to any unauthorized drones that may attempt to breach restricted airspace.
Furthermore, the anti drone system is well-suited for protecting public events and gatherings. Whether it's a music festival, sports event, or political rally, the Hope-Wish Anti Drone System can provide a reliable defense against intrusive drones that could compromise the safety and privacy of attendees.
Law enforcement agencies can also benefit from the versatility of this system. With its long battery duration of over 5 hours and compact cuboid shape, the Hope-Wish Anti Drone System can be easily deployed for surveillance operations, border security, and emergency response situations.
Additionally, the system's package size of 20.00cm * 20.00cm * 10.00cm makes it convenient for transportation and rapid deployment in various environments. The low current consumption of 3.2A@28V ensures efficient operation, while the voltage range of 24-28V offers compatibility with different power sources.
In conclusion, the Hope-Wish Anti Drone System is a reliable and versatile solution for addressing the growing threat of unauthorized drone activity. Its drone detection radar technology, coupled with long-lasting battery performance, makes it an essential tool for safeguarding critical assets, events, and public safety.
Support and Services:
The Anti Drone System product comes with comprehensive Product Technical Support and Services to ensure the system operates effectively and efficiently. Our technical support team is available to assist with any product-related inquiries, troubleshooting, and maintenance needs. Additionally, we offer installation services to ensure proper setup and configuration of the system for optimal performance.
FAQ:
Q: What is the brand name of this anti-drone system?
A: The brand name is Hope-Wish.
Q: What is the model number of this anti-drone system?
A: The model number is HP-
Q: Where is this anti-drone system manufactured?
A: This anti-drone system is manufactured in China.
Q: Is this anti-drone system suitable for outdoor use?
A: Yes, this anti-drone system is designed for both indoor and outdoor use.
Q: Can the anti-drone system detect and neutralize multiple drones simultaneously?
A: Yes, the anti-drone system is capable of detecting and neutralizing multiple drones simultaneously.
