Product Description:

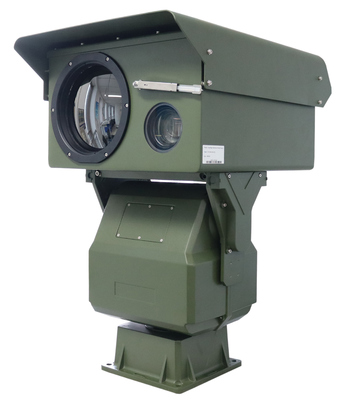

The TTVC12110C-2150 dual-band camera is based on the latest six-generation uncooled infrared technology and high-definition visible light imaging technology, designed for remote day and night monitoring. Infrared thermal imaging with high sensitivity 1280×1024 resolution ultra-fine resolution uncooled focal plane imaging detector, and AS optical technology designed miniaturized infrared lens, advanced digital circuits and image processing algorithms available Fine and smooth image; visible light adopts full HD color black and white dual mode low illumination CMOS sensor and 70 times compact continuous zoom lens, the volume of the whole machine is greatly reduced, which brings great convenience to users' installation applications, supplemented by 360 The full-scale pan/tilt can realize search and observation within 8000m. The internal industrial-grade embedded control electronic system realizes zooming, focusing, mode switching, pan/tilt/rotation high stability control of the camera, and the overall casing adopts super-strong aluminum alloy to achieve IP66 protection level, ensuring the equipment in the harsh environment in the field. Medium and long term operation.
The Long Range Infrared Camera also features Infrared Night Vision technology, enabling you to capture detailed images in low-light or nighttime conditions. This capability enhances the camera's versatility, making it suitable for a wide range of applications where night vision is essential.
Whether you require long-range surveillance, thermal imaging, or night vision capabilities, the Long Range Infrared Camera is a versatile and reliable solution that meets the demands of various industries and applications. Its durable construction, advanced features, and superior performance make it a valuable asset for enhancing security and monitoring operations.
Features:
Technical Parameters:
| Model |
HP-TTVC12110C-2150 |
| Detection |
Vehicle 8600 m Human 3400 m |
| Recognition |
Vehicle 2400 m Human 1000 m |
| Sensor |
UFPA VOx sensor |
| Resolution |
1280×1024 |
| Spectral response |
8～14μm |
| NETD |
50mK(@25℃ F1.0) |
| Focal length |
100mm |
| FOV |
8.8°×7° |
| Lens control |
1. Zoom: Electric zoom
2. Focus: manual / auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, precise high speed
3. Optical machine: 3CAM mode and AS+DOE optical machine structure, high infrared transmittance, no virtual focus and small axis in the zoom process
|
| Image Processing |
1. Image enhancement: SDE digital image enhancement technology to enhance image details
2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities
3. Image parameters: AGC automatic gain control, brightness, contrast
4. Electronic zoom: 1~8X continuous zoom, support global synchronous display
5. NUC correction: automatic / manual correction, background correction
|
| Visible Camera |
1. 1/1.8'' target surface star-level CMOS, integrated ICR dual filter day and night switching
2. Resolution: 2 Mega pixels, 1920×1080
3. Illumination: color: 0.0005 Lux; black and white: 0.0001Lux
4. Encoding: H.265/H.264 video format, support multi-stream
5. Video bit rate: 32Kbps ~ 16Mbps, 60Hz 30 frames / sec
6. Support SD card local storage, support mobile detection, occlusion alarm, cross-border detection, area intrusion detection, face detection
7. Support AFR anti fog, electronic stabilization, white balance, electronic shutter, strong light suppression, 3D digital noise reduction, wide dynamic, anti-infrared overexposed, ABF automatic rear coke adjustment function
|
| Visible Lens |
1. Focal length: 8~500mm, 2 Mega pixel, electric zoom
2. Infrared correction: Optical infrared correction design, day and night focus consistent
3. Focus: Manual/Auto Focus, 3A Adaptive active Focus algorithm, support a variety of trigger modes, accurate high-speed
4. Automatic aperture: Support
5. Day and night Light: 0.4-0.75um visible Wide Spectral window and 0.8-0.95um near infrared laser narrow spectrum window clock independent double-pass light window to improve the signal-to-noise ratio of imaging light and stray light
6. Preset Position: Precision potentiometer, zoom focus Feedback
|
| Housing |
1.Material: integral aluminum alloy housing, stainless steel, anti strong wind ;
2.Structure: Integral double window
3.Window glass: 4mm optical glass ,transmission＞98% ；
4.Surface coating: PTA three-proofing coatings ,
5.Protection:IP66(IP67 optional )
6.Applied thermal balance design and wide temperature electronics ,which could operate under high / low temperature ;
7.Interface : waterproof aviation connector ;
|
| PT |
1. Load: 50kg PTZ
2. Range: Pan 0 ~ 360 °, Tilt -45 ° ~ +45 °
3. Speed: horizontal 0.01 ° / S ~ 30 ° / S, pitch 0.01 ° / S ~ 15 ° / S, support lens focal length speed adaptive function
4. Preset position: 255, support lens zoom, focus preset
5. Accuracy: ±0.1°
6. Patrol sweep: support 6 cruises, 1 apple peel, 1 line sweep
7. Watch: Preset / Auto Cruise Route / Auto Scan Route
8. Power-off memory: support (recoverable position before power-off, preset position status, cruise status, line sweep status)
9. Bearing information: support angle query return, positioning
10. Zero point correction: support north direction zero point remote correction function
11. Power consumption: about 120W
12. Weight: 23kg
|
| Interface |
1. Network interface: 1 way RJ45, 10/100 Base-T adaptive (integrated video output and RS422/485 control communication)
2. Network protocol: support TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2. 0, GB28181 and other network protocols
3. Power supply: AC/DC24V, anti-reverse protection
4. Physical interface: alloy waterproof aviation plug
|
| Enhanced Function |
1. Glare protection: support, anti-sun burn function
2. Temperature correction: no thermal image design, imaging resolution is not affected by temperature
3. Scene mode: support multiple configuration scenarios, adapt to no environment application
4. Auto focus tuning: support remote auto focus precision parameter adjustment, adapt to different scenes
5. Day and night cruise: day and night group cruise different preset groups, day cruise 1-40 preset position, night cruise 41-80 preset position, automatically switch day and night according to the photosensitive state, adapt to different time and space scenes
6. Lens servo: support lens preset position, focal length return, focus positioning function
7. Parameter setting: OSD menu remote call operation
8. Remote maintenance: support embedded program remote upgrade for easy after-sales maintenance
|
| Power & Weight |
1. Total power consumption: 120W
2. Total weight: 25kg (including Pan/Tilt)
|
| Environment indicator |
1. Working temperature: -25 ℃~ +60℃ (optional -40 ℃)
2. Storage temperature: -45℃ ~ + 70 ℃
3. Humidity: <90%
4. Earthquake resistance: 0.2g (according to the 5.4 severity level 2 of GB/T15211-2013)
5. Impact resistance: 15g (according to the 5.3 severe level 3 of GB/T15211-2013)
6. Lightning protection: built-in surge protection of interface circuit, power supply 4000V, signal 2000V
7. Anti-salt fog: at pH 6.5 ~ 7.2, continuous spraying for 96 hours, no change in surface
Protection level: IP66
|
Applications:
The Hope-Wish HP-TVC Long Range Infrared Camera is a versatile and durable product designed for various application occasions and scenarios. With its advanced features and high-quality construction, this camera is ideal for a wide range of uses.
One of the key application scenarios for the Hope-Wish HP-TVC is in the field of surveillance and security. The long-range capabilities of the camera make it perfect for monitoring large outdoor areas, such as parking lots, industrial sites, and borders. Its infrared thermal camera module ensures clear and detailed images even in low-light conditions, making it an excellent choice for nighttime surveillance.
Another important application occasion for the HP-TVC is in wildlife monitoring and research. The camera's infrared remote control allows for discreet and non-intrusive observation of animals in their natural habitats. Whether used for scientific research or recreational purposes such as hunting, the HP-TVC provides high-quality images and videos that capture the beauty of wildlife.
Furthermore, the Hope-Wish HP-TVC is well-suited for use in extreme environments due to its IP66 feature and working temperature range of -25℃ to +55℃. This makes it ideal for outdoor use in harsh weather conditions, ensuring reliable performance even in challenging situations.
Additionally, the camera's fog penetration feature, including the optional fog filter, enhances its versatility in various weather conditions. Whether used in foggy or misty environments, the HP-TVC delivers clear images and videos, making it a valuable tool for applications where visibility may be compromised.
Overall, the Hope-Wish HP-TVC Long Range Infrared Camera is a dependable and efficient product suitable for a wide range of application occasions and scenarios. Whether used for surveillance, wildlife monitoring, or outdoor activities, this camera provides reliable performance and high-quality imaging capabilities.
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.Support and Services:
The Long Range Infrared Camera product offers comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our dedicated team of experts is available to provide assistance with any product-related inquiries, troubleshooting, and maintenance needs.
Our services include installation guidance, software updates, calibration support, and product training to maximize the capabilities of the Long Range Infrared Camera. Additionally, we offer extended warranty options and customization services to tailor the product to specific requirements.
FAQ:
Q: What is the brand of this long-range infrared camera?
A: The brand of this camera is Hope-Wish.
Q: What is the model number of this long-range infrared camera?
A: The model number is HP-TVC.
Q: Where is this long-range infrared camera manufactured?
A: This camera is manufactured in China.
Q: What is the maximum range of this long-range infrared camera?
A: The maximum range of this camera is 300 meters.
Q: Does this long-range infrared camera come with night vision capabilities?
A: Yes, this camera is equipped with night vision capabilities for clear images in low-light or dark conditions.
